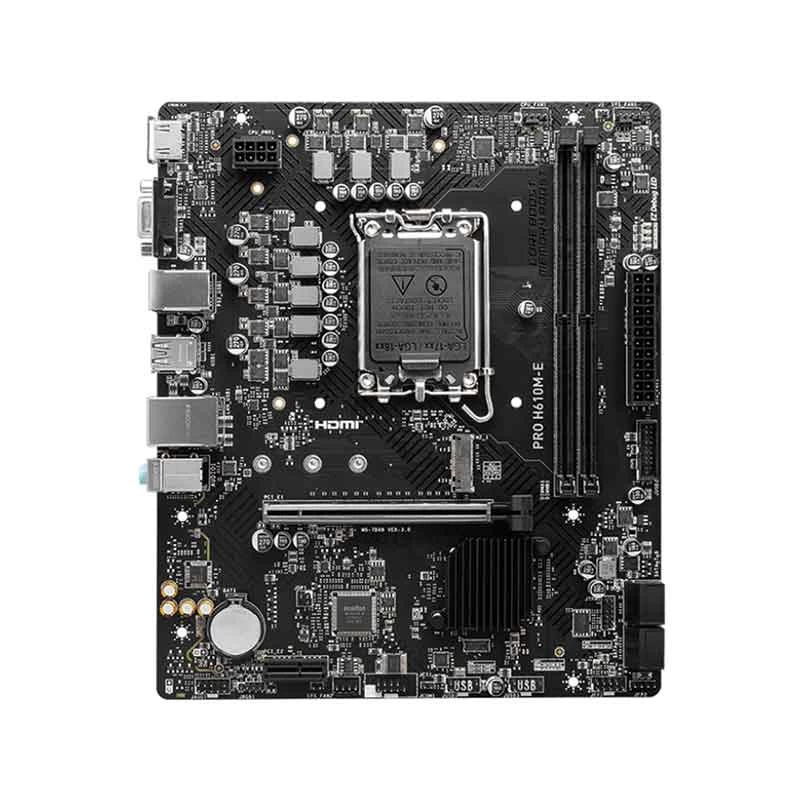

MSI PRO H610M-E DDR5 Intel Motherboard

Brand: MSI

Original price was: 10,700.00৳ .Current price is: 10,200.00৳ .

Short overview

  • Model: PRO H610M-E
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 96GB
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron Processors
LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX
200mmx236.16mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Memory
Type DDR5
Slots 2
Supported Memory Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 96GB
Graphics
Graphics Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

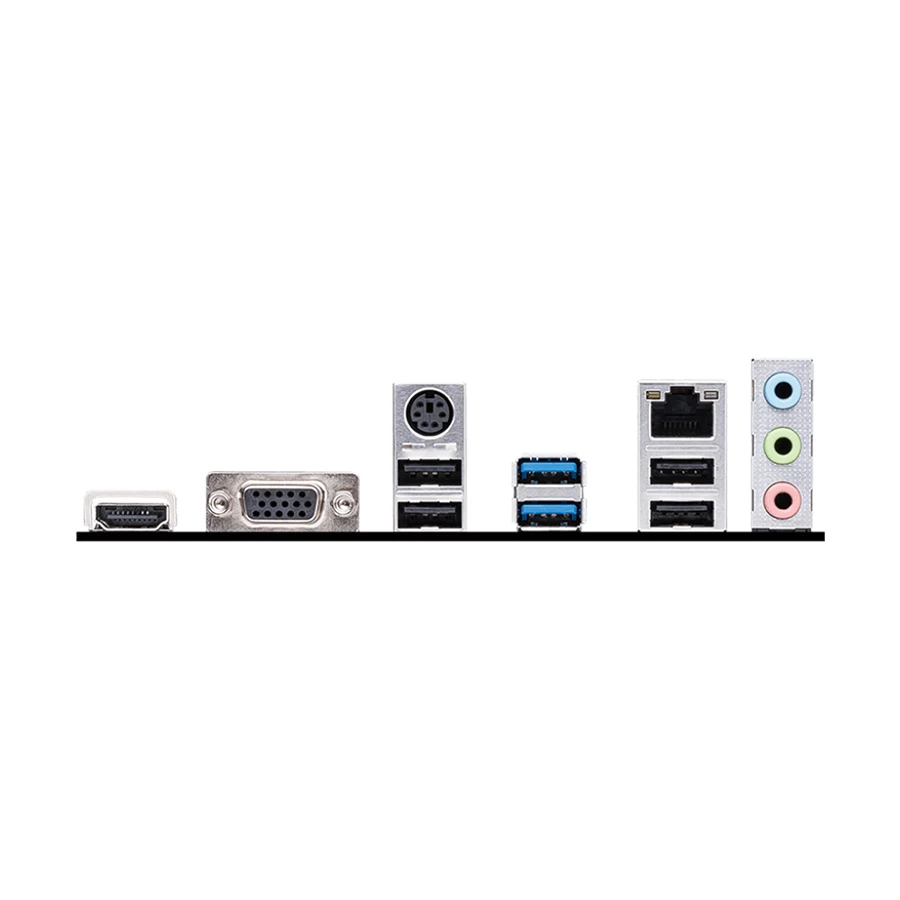

Connector & Ports
HDMI 1x HDMI 1.4 with HDR port
VGA (s) 1x VGA
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Audio 1x Front panel audio connector
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 1x 4-pin RGB LED connector
4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years

MSI PRO H610M-E DDR5 Intel Motherboard

The MSI PRO H610M-E mATX Motherboard is a solid and adaptable foundation for Intel-based systems. This motherboard is compatible with Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron CPUs on the LGA 1700 socket. It incorporates the most recent memory technology, supporting DDR5 Memory with a maximum frequency of up to 5600MHz, allowing for quicker and more efficient data handling. Core Boost technology improves performance by offering strong support for many cores, thanks to its superior layout and digital power architecture. Memory Boost technology assures the delivery of clean data signals, which contributes to excellent performance, stability, and compatibility. Users may enjoy lightning-fast data transfer speeds with PCIe 4.0 compatibility, providing high-speed connection for current peripherals and storage devices. The motherboard has Audio Boost technology, which delivers studio-grade sound quality for immersive gaming and multimedia. Steel Armor protects VGA cards from bending and electromagnetic interference (EMI), improving overall performance, stability, and strength. In conclusion, the MSI PRO H610M-E mATX Motherboard combines cutting-edge technology, a sturdy design, and premium features to provide a dependable and high-performance foundation for a wide range of computing operations, appealing to gamers, content creators, and power users alike.
