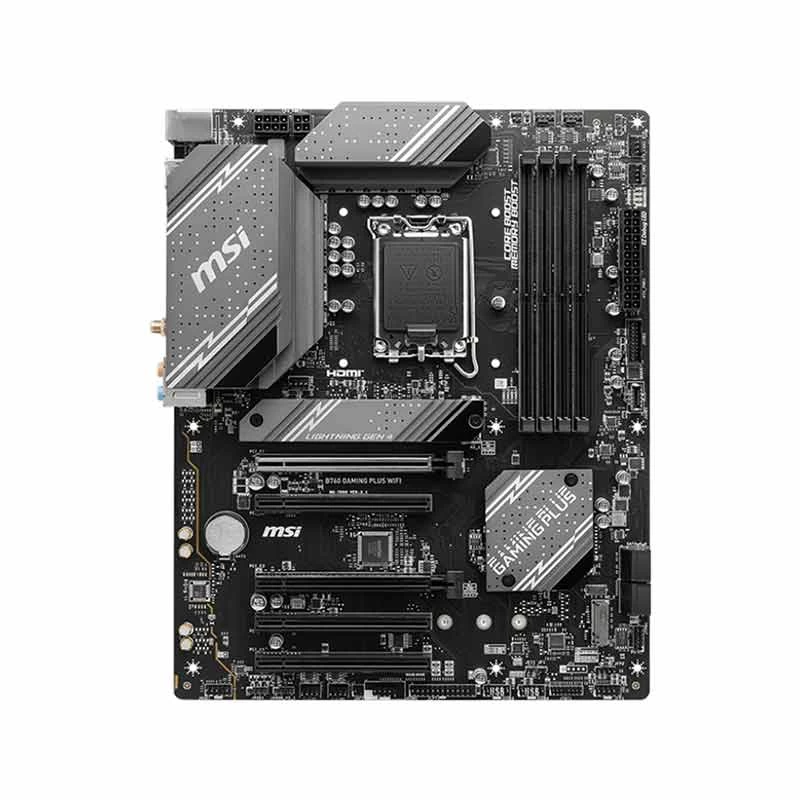

MSI B760 GAMING PLUS (Wi-Fi 6E) DDR5 Intel GAMING Motherboard

Brand: MSI

Original price was: 23,000.00৳ .Current price is: 22,400.00৳ .

Short overview

  • Model: B760 GAMING PLUS WIFI
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 6800+MHz (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA1700
Chipset INTEL B760
Form Factor ATX
243.84mmx304.8mm
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI 5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type DDR5
Slots 4
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 192GB
Graphics
Graphics 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz

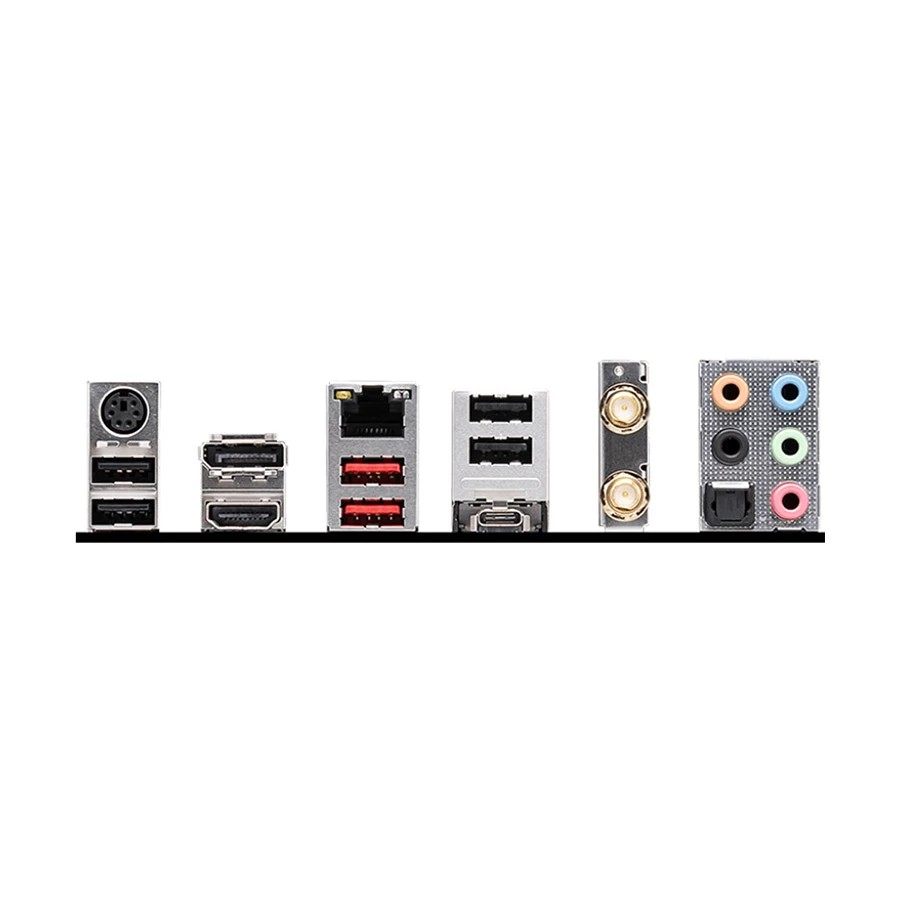

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Wireless Communication module Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years

MSI B760 GAMING PLUS (Wi-Fi 6E) DDR5 Intel GAMING Motherboard

The MSI B760 GAMING PLUS WIFI ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760 GAMING PLUS WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6800+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The 14th Gen Motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760 GAMING PLUS WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760 GAMING PLUS WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.
