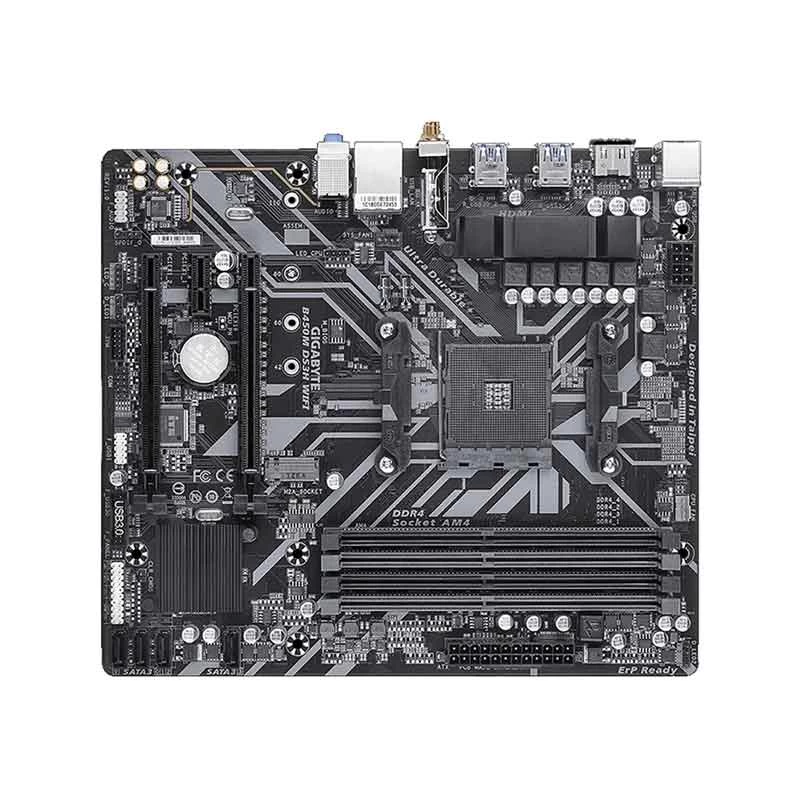

GIGABYTE B450M DS3H (Wi-Fi) DDR4 AMD Motherboard

Brand: Gigabyte

Original price was: 12,000.00৳ .Current price is: 11,200.00৳ .



Short overview

  • Model: B450M DS3H WIFI
  • Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
  • Supported Memory: Dual Channel DDR4, 4 DIMMs
  • Intel Dual Band 802.11ac WIFI & BT 4.2
  • High Quality Audio Capacitors
Basic Information
Supported CPU AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
(Please refer “CPU Support List” for more information.)
Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Actual support may vary by CPU.
Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 DIMM sockets
Supported Memory Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Maximum Memory 128 GB
Graphics
Graphics Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon

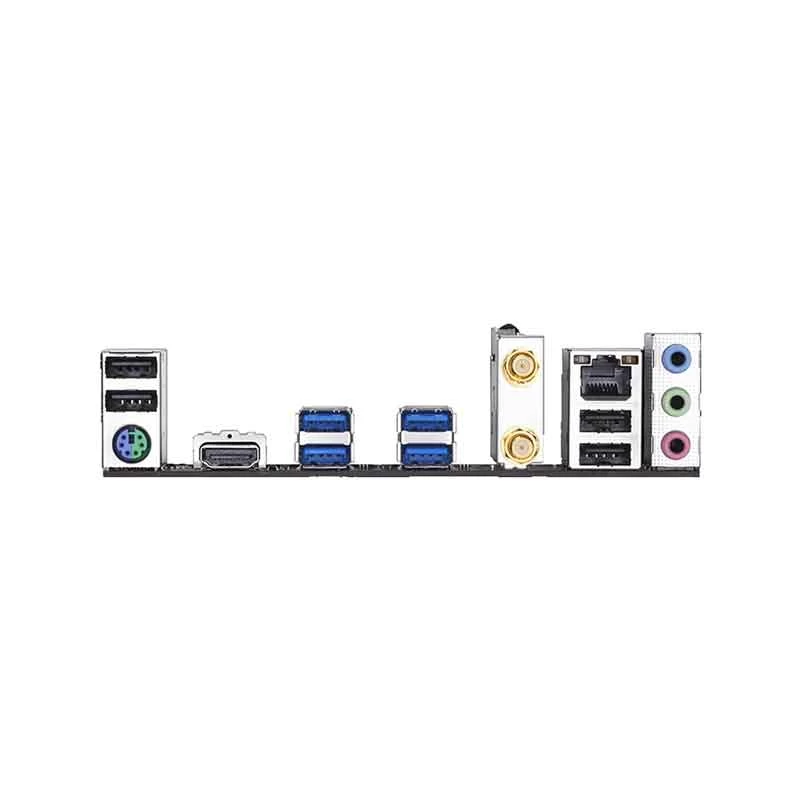

Connector & Ports
HDMI 1 x HDMI port
USB (s) CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Actual data rate may vary depending on environment and equipment.
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Actual support may vary by CPU.
Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
Others
Special Features Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed
Warranty Information
Manufacturing Warranty 03 years

GIGABYTE B450M DS3H (Wi-Fi) DDR4 AMD Motherboard

GIGABYTE B450M DS3H WIFI Supports with AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. This motherboard featured with Intel Dual Band 802.11ac WIFI & BT 4.2. The onboard 802.11ac WIFI module from Intel supports Dual Band and up to 433 Mbps, 3x faster WIFI speed which is faster than 802.11n and also support BLUETOOTH 4.2. The GIGABYTE B450M DS3H WIFI comes with Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support, High Quality Audio Capacitors and Audio Noise Guard Design, RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support, Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune and Cloud Station Utilities and also has CEC 2019 Ready, Save Power with a Simple Click. Here, GIGABYTE M.2 solution offers considerably faster storage performance and also support for PCIe and SATA interfaces for M.2 SSD devices. With the Smart Fan 5, Gamers can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different space on the motherboard. By equipping resistors with an Anti-Sulfur Design GIGABYTE B450M DS3H WIFI gives Ultra Durable Motherboards a whole new meaning. This latest GIGABYTE B450M DS3H WIFI offeres 03 years warranty.
