ASUS TUF GAMING A620M-PLUSDDR5 AMD AM5 Motherboard

Brand: Asus

Original price was: 19,600.00৳ .Current price is: 19,490.00৳ .

Short overview

  • Model: TUF GAMING A620M-PLUS
  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported Memory: 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x Realtek 2.5Gb Ethernet
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset AMD A620 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor Micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot
AMD A620 Chipset
2 x PCIe 3.0 x1 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 2 x DisplayPort**
1 x HDMI port***
** Support max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

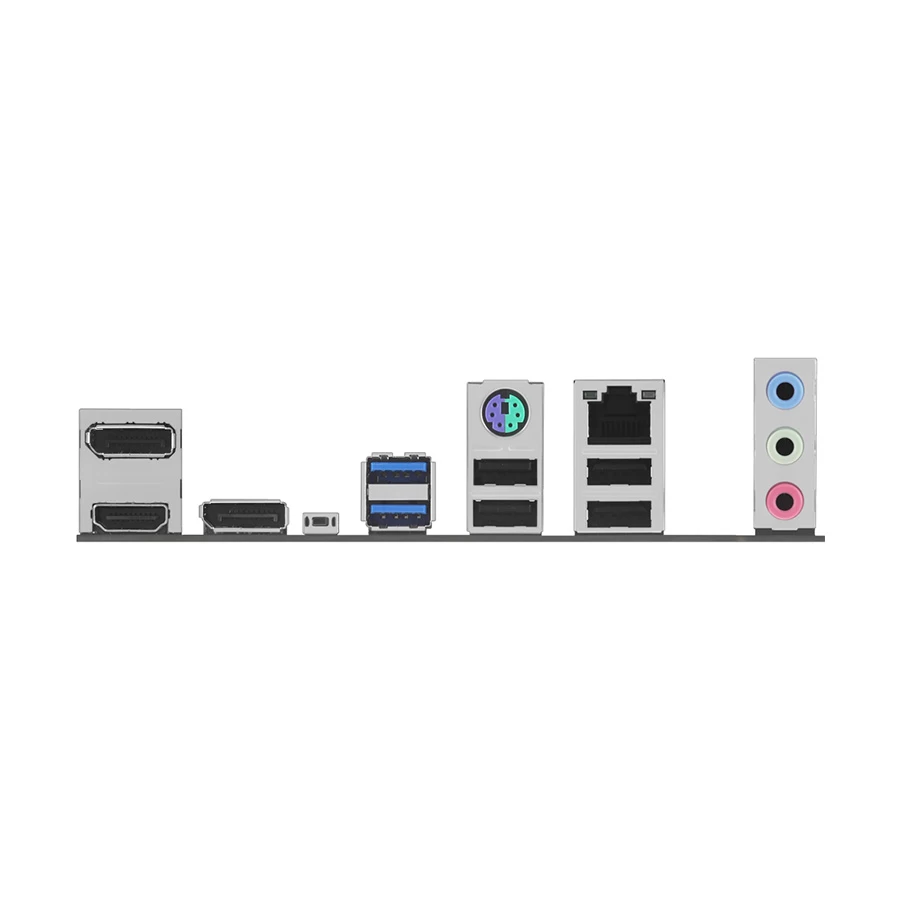

Connector & Ports
HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
Others
Special Features ASUS TUF PROTECTION
– DIGI+ VRM
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
TUF GAMING CPU-Z
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years

ASUS TUF GAMING A620M-PLUSDDR5 AMD AM5 Motherboard

The ASUS TUF GAMING A620M-PLUS is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 128GB of DDR5 memory with speeds up to 6400MHz (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS Motherboard supports ASUS-exclusive software such as Armoury Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
