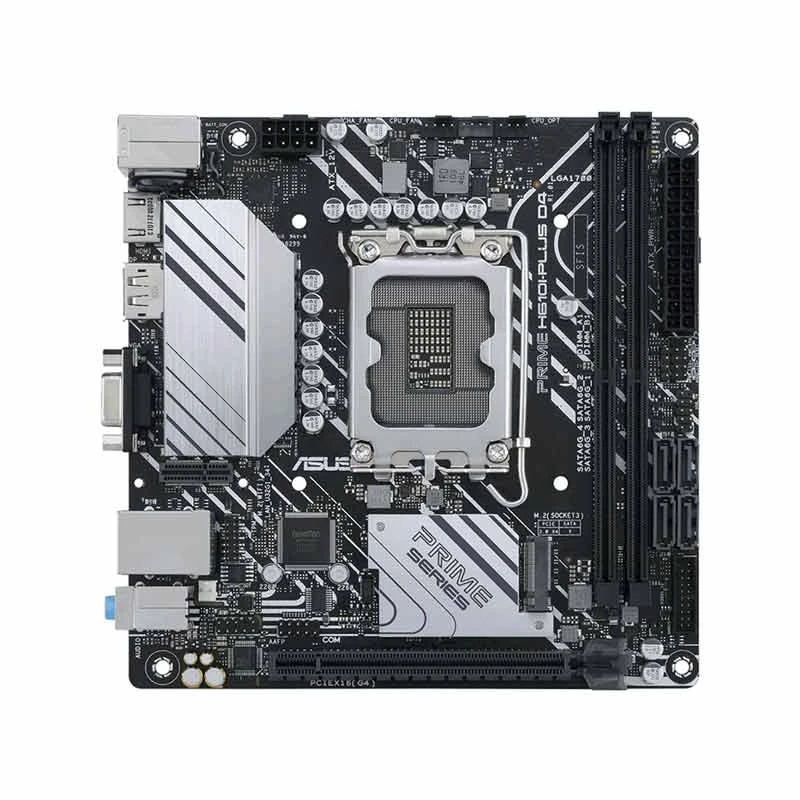

ASUS PRIME H610I-PLUS DDR4 intel Motherboard

Brand: Asus

Original price was: 17,000.00৳ .Current price is: 16,800.00৳ .

Short overview

  • Model: PRIME H610I-PLUS D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 3200
  • Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub
  • Features: 1 x Realtek 1Gb Ethernet
Basic Information
Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Dedicated audio PCB layers
Expansion Slots
PCI Intel 14th & 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
M.2 Socket 1 x M.2 slots
Memory
Type DDR4
Slots 2x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics
Graphics Support DisplayPort 1.4 with max. resolution of 4K@60Hz.
Support HDMI® 2.1 with max. resolution of 4K@60Hz.
Connector & Ports
HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub
USB (s) Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Audio 3x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Warranty Information
Manufacturing Warranty 3 years warranty

ASUS PRIME H610I-PLUS DDR4 intel Motherboard

The ASUS PRIME H610I-PLUS D4 Mini ITX motherboard is engineered to deliver high performance and robust connectivity for compact PC builds. It is based on the Intel H610 chipset and supports the Intel LGA 1700 socket, making it compatible with 14th, 13th, and 12th Gen Intel Core processors. This motherboard boasts an enhanced power delivery system with 5+1+1 DrMOS power stages, ensuring stable and reliable performance. Cooling is efficiently managed through the inclusion of VRM and PCH heatsinks, as well as Fan Xpert technology. In terms of connectivity, it offers a 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and multiple USB 3.2 Gen 1 ports, ensuring fast data transfer and reliable internet connectivity. The motherboard supports a variety of display outputs, including DisplayPort, HDMI, and D-Sub, providing versatile options for different setups. Additional features include COM and mono-out headers with an Amp IC for expanded peripheral connectivity and SATA 6 Gbps ports for quick data access. The ASUS PRIME H610I-PLUS D4 incorporates 5X Protection III, offering multiple hardware safeguards. This combination of performance, cooling, connectivity, and protection makes it an excellent choice for building a powerful yet compact system.
