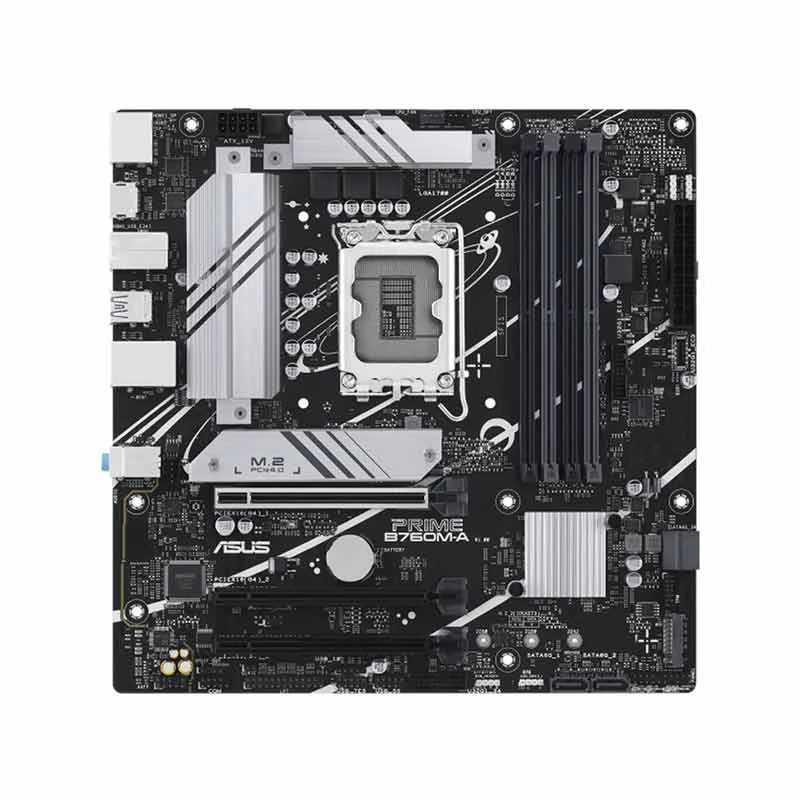

Asus PRIME B760M-A DDR5 Intel Motherboard

Brand: Asus

Original price was: 20,400.00৳ .Current price is: 20,200.00৳ .

Short overview

  • Model: PRIME B760M-A
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 128GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
Basic Information
Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket Total supports 2 x M.2 slots
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB
Graphics
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4)
2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI 2 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

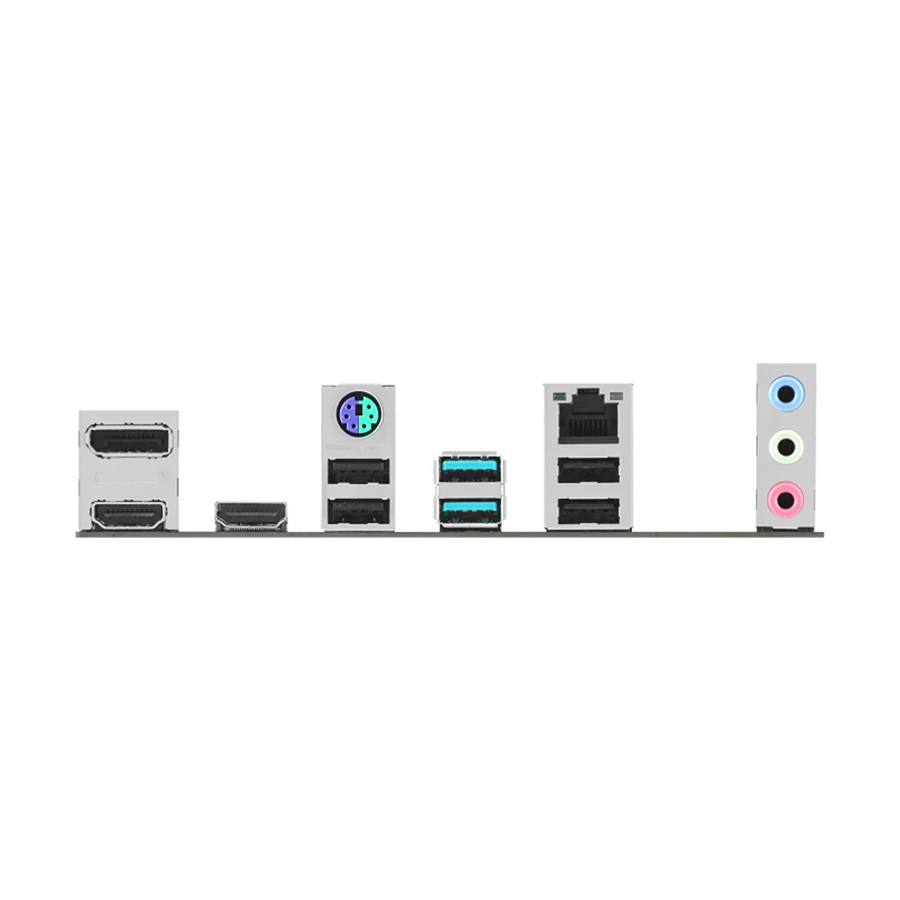

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– Digi+ VRM
– PC Cleaner
ASUS CPU-Z
Norton Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years warranty

Asus PRIME B760M-A DDR5 Intel Motherboard

The Asus PRIME B760M-A is a microATX motherboard for Intel’s LGA 1700 socket that offers a flexible foundation for developing powerful and feature-rich computer systems. This motherboard, designed for 14th, 13th, and 12th Gen Intel processors, assures compatibility with a wide selection of CPUs, giving consumers freedom in selecting their chosen processor. The strength of this motherboard is its many connection choices. PCIe 4.0 compatibility assures speedy data transfer speeds, making it perfect for high-performance graphics cards and storage devices. Additionally, two M.2 slots are available for high-speed NVMe SSDs, providing for faster data access and shorter load times. The Realtek 2.5Gb Ethernet offers quick and stable network access, while the rear USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C connector offer simple and high-speed peripheral connectivity. The Asus PRIME B760M-A prioritizes cooling, including VRM heatsinks, an M.2 heatsink, and a PCH heatsink to maintain ideal temperatures during strenuous workloads. The integration of hybrid fan headers and Fan Xpert 2+ technology allows customers to precisely tailor and manage the cooling of their system. The motherboard has proprietary memory technologies such as ASUS Enhanced Memory Profile II and ASUS OptiMem II, which optimize memory performance and stability for improved system responsiveness. The Aura Sync RGB Lighting provides a touch of elegance to the system for consumers who value aesthetic customization. Synchronization with compatible RGB LED strips and other Aura Sync-capable gear is enabled by onboard Addressable Gen 2 headers and an Aura RGB header, allowing users to construct a coherent and visually appealing lighting system. The Asus PRIME B760M-A is a feature-rich mATX motherboard with powerful performance, extensive connections, effective cooling, and configurable aesthetics, making it a great choice for anyone wishing to construct a high-quality and visually pleasing system.
