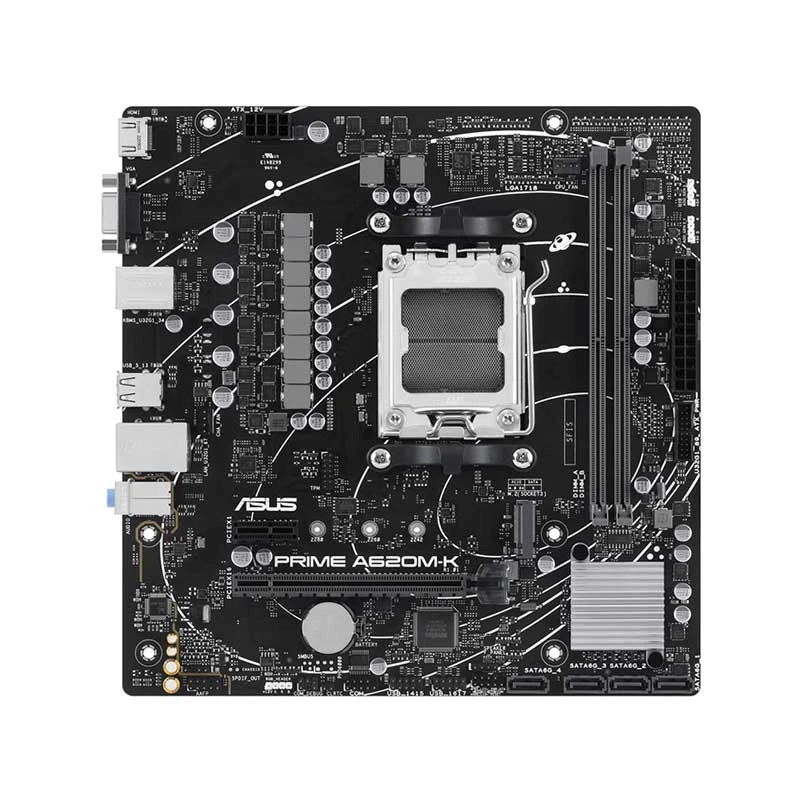

Asus PRIME A620M-K DDR5 AMD AM5 Socket Motherboard

Brand: Asus

Original price was: 12,800.00৳ .Current price is: 12,500.00৳ .

Short overview

  • Model: PRIME A620M-K
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
  • Graphics Output: 1x HDMI, 1 x VGA
  • Features: 1 x Realtek 1Gb Ethernet
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD A620 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620 Chipset
1 x PCIe 3.0 x1 slot
Memory
Type DDR5
Slots 2 x DIMM slots
Supported Memory 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Maximum Memory Max. 96GB
Graphics
Graphics 1 x VGA port
1 x HDMI port
Connector & Ports
HDMI 1x HDMI
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors

Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

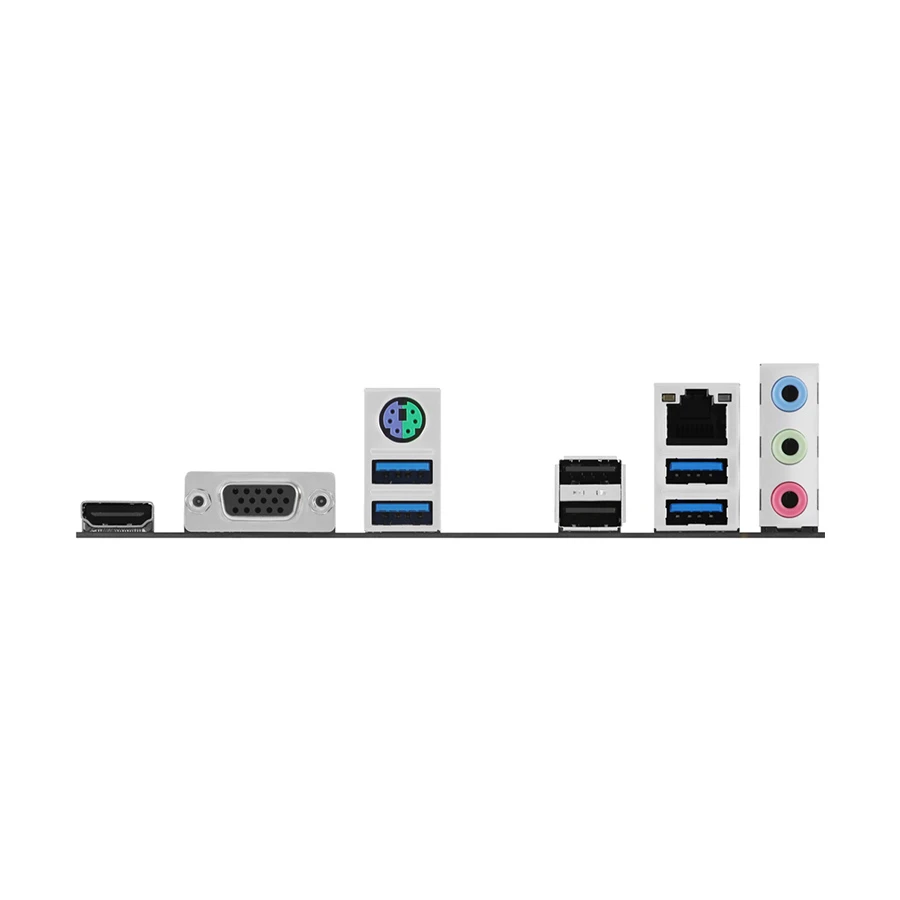

Back Panel I/O Ports

4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x VGA port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years Warranty

Asus PRIME A620M-K DDR5 AMD AM5 Socket Motherboard



The Asus PRIME A620M-K AM5 mATX Motherboard is designed with the future of AI computing in mind, offering the power and connectivity required for demanding applications. It features an AM5 socket, making it compatible with AMD Ryzen Desktop Processors, ensuring support for the latest generation of processors. The motherboard boasts ultrafast connectivity options, including PCIe 4.0 for high-speed data transfer, a 64Gbps M.2 slot for rapid storage solutions, Realtek 1Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A for versatile peripheral connectivity. To keep your system running optimally, the motherboard includes comprehensive cooling solutions with a PCH heatsink and Fan Xpert technology. Additionally, it features Aura Sync RGB lighting, with onboard Addressable Gen 2 headers and an Aura RGB header, allowing for seamless synchronization of RGB LED strips with other Aura Sync-capable hardware. The Asus PRIME A620M-K also enhances communication quality with its two-way AI noise cancelation, which reduces background noise from both the microphone and audio output, ensuring crystal-clear communication during gaming sessions or video conferences.
