Asus EX-B650M-V7 DDR5 AMD Motherboard

Brand: Asus

Original price was: 15,900.00৳ .Current price is: 15,600.00৳ .

Short overview

  • Model: EX-B650M-V7
  • Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
  • Supported RAM: 2x DDR5, up to 192GB, 7600+(OC)
  • Graphics Output: 1x HDMI
  • Features: Realtek 2.5Gb Ethernet
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset AMD B650
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slot
Memory
Type DDR5
Slots 2 x DIMM slots
Supported Memory 8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
Maximum Memory 96GB
Graphics
Graphics 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports
HDMI 1x HDMI
USB (s) Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
RAID AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
Audio 3 x Audio jacks

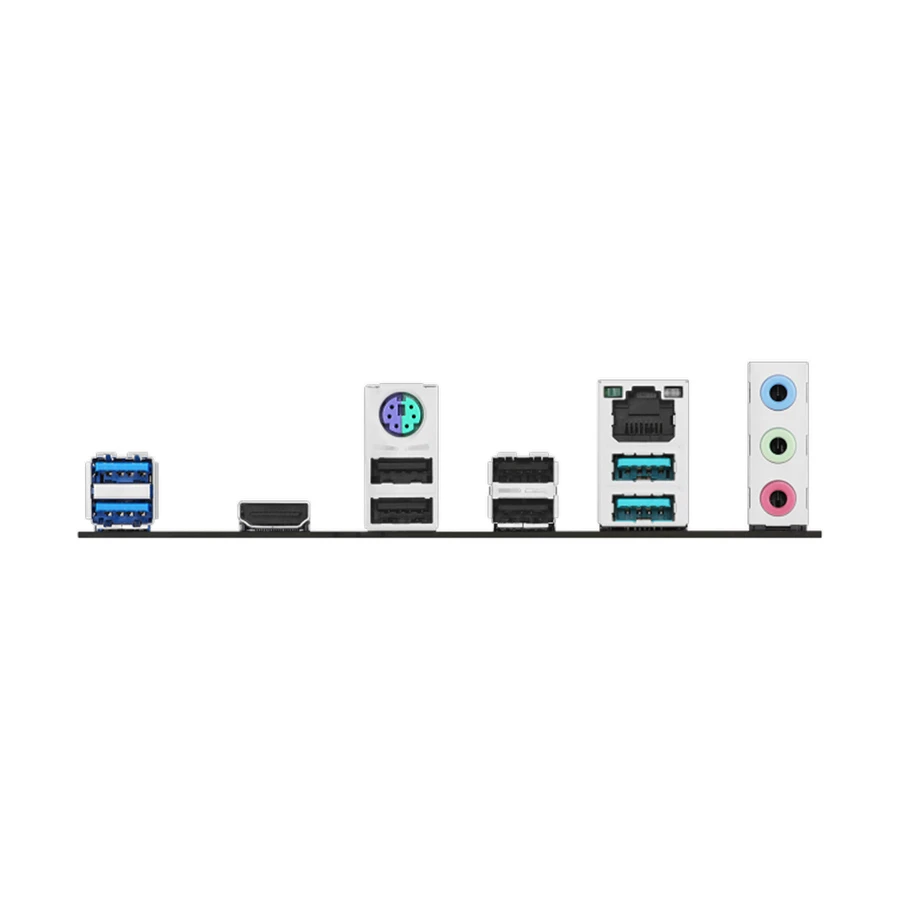

Internal I/O Ports Back Panel I/O Ports
2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
Non-stop Action
– Lightning Boot
Non-stop Challenger
– ASUS iCafe labs certified
Non-stop Durability
– Luminous anti-moisture coating
– USBGuard
Warranty Information
Manufacturing Warranty 3 Years

Asus EX-B650M-V7 DDR5 AMD Motherboard

The Asus EX-B650M-V7 Motherboard is designed to handle nonstop activity and strenuous gaming sessions. Its high-performance micro-ATX architecture offers top performance and compatibility with cutting-edge gaming technology. DDR5 memory support allows for quicker and more effective multitasking, while PCIe 5.0 offers lightning-fast data transfer for better gameplay. The Asus EX-B650M-V7 Motherboard provides a variety of connectivity choices in addition to its remarkable performance characteristics. The Realtek 2.5Gb Ethernet offers a strong and dependable internet connection, while the HDMI and USB 3.2 Gen 2 ports allow for smooth integration with peripherals and external devices. This motherboard is intended to keep players connected and engaged in their gaming experience. The Asus EX-B650M-V7 Motherboard is extremely durable. Its bright anti-moisture layer guards against any moisture damage, assuring lifespan and dependability. The Lightning startup function provides fast startup speeds, allowing gamers to hop right into their favorite games. This motherboard is designed to endure the demands of gaming while also providing a dependable and long-lasting base for gamers. The Asus EX-B650M-V7 Motherboard is ideal for gamers as well as iCafés, configure-to-order gaming systems, and quality-driven enterprises. Its unrivaled features, including LANGuard, SafeSlot Core+, USBGuard, stainless-steel rear I/O, and 5X Protection III, offer continuous endurance and protection against possible harm. As a result, it is an excellent solution for enterprises that demand a dependable and high-performance motherboard. The gaming-centric features of the Asus EX-B650M-V7 Motherboard will appeal to gamers. DDR5 memory compatibility allows gamers to enjoy quicker and more responsive gameplay. The PCIe 4.0 compatibility enables quicker data transfer, resulting in smooth, lag-free gameplay. The 128Gbps M.2 slot offers high-speed storage choices, allowing gamers to easily install and load games. Realtek 2.5 Gb Ethernet offers a strong and dependable internet connection, while ASUS Beyond VR compatibility ensures compatibility with virtual reality games. ASUS iCaf LAB has validated the Asus EX-B650M-V7 Motherboard for reboot and compatibility testing in diskless systems. This certification confirms the motherboard’s dependability and compatibility with diskless-system configurations widely used in iCafés. Also, the motherboard is compatible with a broad range of devices.
