ASRock H610M-H2/M.2 D4 DDR4 Intel Motherboard

Brand: ASRock

Original price was: 9,600.00৳ .Current price is: 9,200.00৳ .

   Short overview

  • Model: H610M-H2/M.2
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports: Up to DDR4 3200MHz
  • Graphics Output: 2x HDMI
  • Features: Realtek ALC897 7.1 CH HD Audio Codec
Basic Information
Supported CPU – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology
Chipset Intel H610
BIOS – 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor – Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)*
M.2 Socket – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DDR4 DIMM Slots
Supported Memory – Supports DDR4 non-ECC, un-buffered memory up to 3200
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory 64GB
Graphics
Graphics – Intel® Xe Graphics Architecture (Gen 12)
– 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

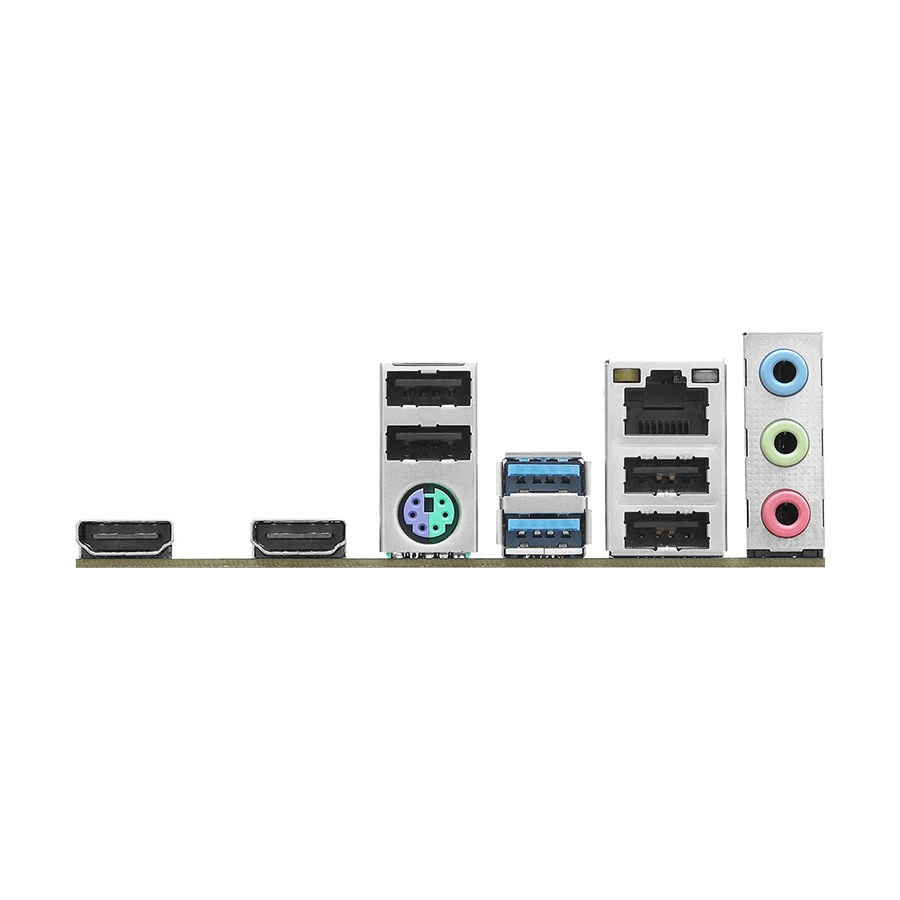

Connector & Ports
HDMI 2 x HDMI Port
USB (s) – 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)
LAN Port (s) – Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H
Supported Storage – 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors* Supports NVMe SSD as boot disks
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use.
TPM (Trusted Platform Module ) – 1 x SPI TPM Header
Others
Bundled Software – ASRock Motherboard Utility (A-Tuning)
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Warranty Information
Manufacturing Warranty 3 years

Description

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

The ASROCK H610M-H2/M.2 mATX Motherboard is a versatile and powerful foundation for your PC build, supporting 14th, 13th, and 12th Gen Intel Core processors with the LGA1700 socket. Designed for high performance and reliability, this ASROCK motherboard features a 3+1+1 phase power design and supports dual-channel DDR4 memory up to 3200MHz. The motherboard includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot, providing ample expansion options for graphics cards and other peripherals. For storage, it offers four SATA3 ports and one Ultra M.2 slot (PCIe Gen3 x4) for high-speed SSDs. Connectivity is robust with four USB 3.2 Gen1 ports (two rear, two front) and six USB 2.0 ports (four rear, two front), along with Realtek Gigabit LAN for fast and reliable internet access. The integrated Realtek ALC897 7.1 CH HD Audio Codec ensures high-quality sound for an immersive audio experience. Additionally, the ASROCK motherboard supports dual HDMI outputs, making it easy to set up multiple monitors. With features like ASRock’s Auto Driver Installer, setting up your system is straightforward and hassle-free. The ASROCK H610M-H2/M.2 is an excellent choice for anyone looking to build a powerful and efficient PC with the latest Intel processors.ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard has 3 year warranty
