ASRock B760M Pro-A DDR5 Micro ATX Motherboard

Brand: ASRock

Original price was: 16,900.00৳ .Current price is: 16,500.00৳ .

Short overview

  • Model: B760M Pro-A
  • Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Basic Information
Supported CPU Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel B760
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
– Supports AMD CrossFire
Memory
Type DDR5
Slots 4
Supported Memory Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0

1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

Maximum Memory 256GB
Graphics
Graphics – Intel Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) Chipset:
– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
LAN Port (s) – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User-Friendly UI
– Visual Network Usage Statistics
– Optimized Default Settings for Game, Browser, and Streaming Modes
– User Customized Priority Control
Supported Storage CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

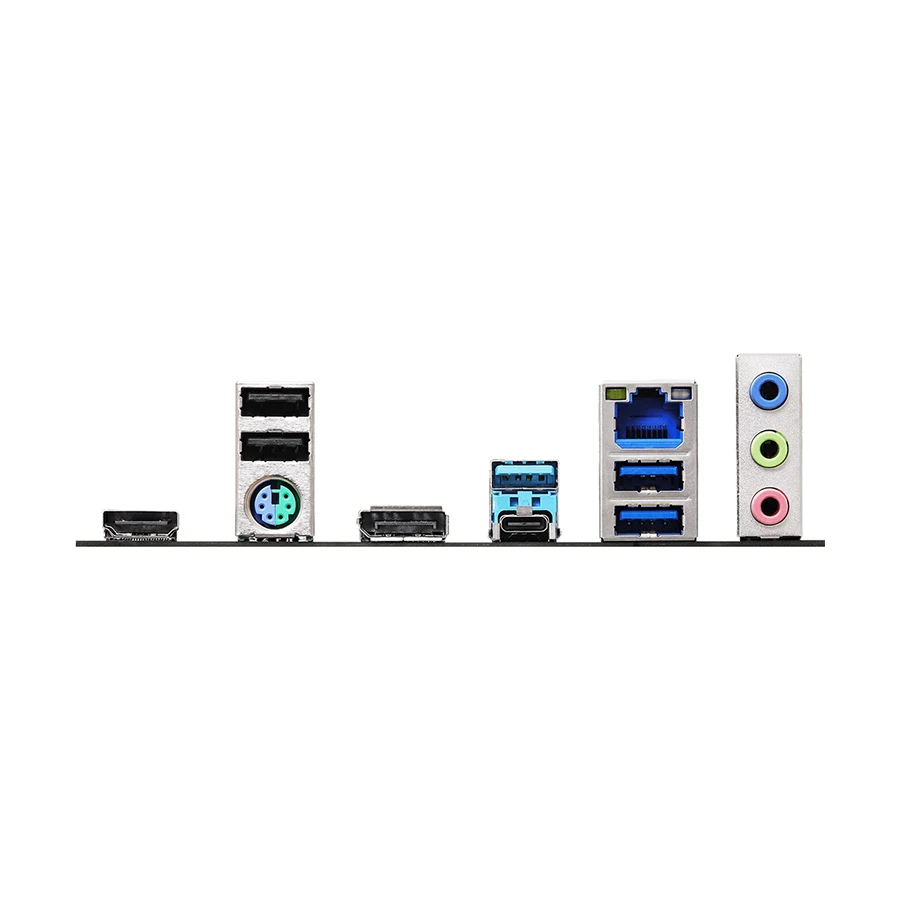

Internal I/O Ports – 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 2 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Connector
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

TPM (Trusted Platform Module ) – 1 x SPI TPM Header
Others
Special Features Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 7+1+1 Power Phase, Dr.MOS for VCore+GT
Ultrafast Connectivity
– 2.5G LAN
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
Bundled Software Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty 3 years

Description

ASRock B760M Pro-A DDR5 Micro ATX Motherboard



The ASRock B760M Pro-A DDR5 Micro ATX motherboard is a powerful and versatile platform designed to support the latest Intel Core processors, including the 14th, 13th, and 12th generations with the LGA1700 socket. It features a robust 7+1+1 power phase design, utilizing Dr.MOS for efficient VCore and GT performance. With four DDR5 DIMM slots, it supports dual-channel memory with speeds up to 7200+ MHz when overclocked, providing exceptional performance for gaming, content creation, and multitasking. This motherboard is equipped with a PCIe 5.0 x16 slot for the latest high-performance graphics cards, as well as additional PCIe 3.0 x16 and M.2 Key E slots for WiFi expansion. For graphics output, the board offers HDMI and DisplayPort options. Audio is powered by the Realtek ALC897 7.1-channel HD audio codec, ensuring crystal-clear sound quality. Storage and connectivity are well catered for, with four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) for fast storage solutions. USB connectivity is abundant, featuring two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front). Networking is handled by the Dragon 2.5G LAN, providing high-speed internet connectivity. The motherboard also supports ASRock’s Auto Driver Installer, simplifying the setup process for users.
