ASRock B650M Pro RS WiFi AM5 Motherboard

Brand: ASRock

Original price was: 23,800.00৳ .Current price is: 23,500.00৳ .

Short overview

  • Model: B650M Pro RS WiFi
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 256GB, 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Wi-Fi 6E
Basic Information
Supported CPU Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset AMD B650
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
Expansion Slots
PCI CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset:
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
Type DDR5
Slots – 4 x DDR5 DIMM Slots
Supported Memory – Dual Channel DDR5 Memory Technology
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory Max. 256GB
Graphics
Graphics Integrated AMD RDNA graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort 1.4
USB (s) – 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s) – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Wireless Communication module – 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band* support
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO
Supported Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio 3 x Audio jacks

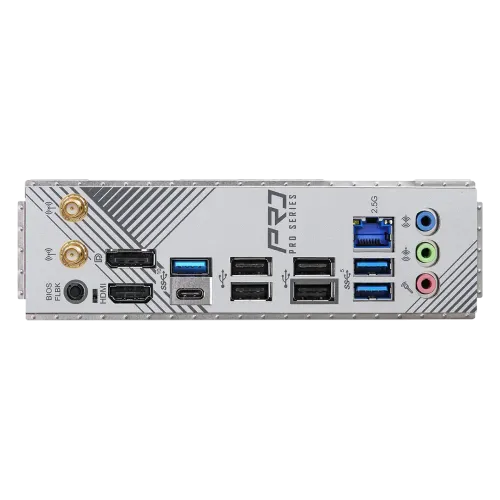

Internal I/O Ports Rear Panel I/O
– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone

Connector
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module ) – 1 x SPI TPM Header
Others
Special Features Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 8+2+1 Power Phase, 50A Dr.MOS
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
Bundled Software Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Warranty Information
Manufacturing Warranty 3 Years Warranty

Description

ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard



The ASRock B650M Pro RS WiFi AM5 Micro ATX Motherboard is a high-performance motherboard that supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors. It is equipped with an 8+2+1 Power Phase VRM design, featuring Dr.MOS technology for stable and efficient power delivery, making it ideal for demanding tasks like gaming and content creation. The motherboard supports up to four DDR5 DIMMs in dual-channel mode, with speeds reaching up to 7200+ MHz when overclocked, ensuring exceptional memory performance. It offers 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x16 slot, allowing for flexible graphics cards and peripheral installations. The board also provides versatile display options through HDMI and DisplayPort outputs. On the audio front, it includes the Realtek ALC897 7.1 Channel HD Audio Codec and Nahimic Audio, delivering an immersive sound experience. Storage options are plentiful with 4 SATA3 ports, a Blazing M.2 slot (PCIe Gen5 x4), a Hyper M.2 slot (PCIe Gen4 x4), and an additional M.2 slot (PCIe Gen4 x2), catering to both high-speed NVMe SSDs and traditional SATA drives. Connectivity is robust with a Dragon 2.5G LAN for fast wired networking, along with 802.11ax Wi-Fi 6E and Bluetooth for seamless wireless connections. The motherboard also features a variety of USB ports, including 1 USB 3.2 Gen2 Type-A and Type-C port at the rear, a USB 3.2 Gen1 Type-C port at the front, and 6 USB 3.2 Gen1 Type-A ports (2 rear, 4 front), providing ample options for connecting peripherals. Overall, the ASRock B650M Pro RS WiFi is a feature-rich motherboard that delivers excellent performance, making it a strong choice for building a high-end PC.
