Asrock B450M Steel Legend AMD Motherboard

Brand: ASRock

Original price was: 14,000.00৳ .Current price is: 13,800.00৳ .

Short overview

  • Model: Asrock B450M Steel Legend
  • Supports AM4 Socket Ryzen 2000, 3000 & 5000 Series Processors
  • Supports DDR4 3533+ (OC)
  • AMD Quad CrossFireX
  • Graphics Output: DisplayPort, HDMI
Basic Information
Supported CPU Supports AMD AM4 Socket Ryzen 2000, 3000 and 5000 Series Desktop Processors
Chipset AMD Promontory B450
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Expansion Slots
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Ryzen series CPUs (Raven Ridge)
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
AMD Athlon series CPUs
– 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
– 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)

– 1 x PCI Express 2.0 x1 Slot
– Supports AMD Quad CrossFireX™ and CrossFireX™
M.2 Socket 1 x Ultra M.2 Socket (M2_1)
Memory
Type Dual Channel DDR4 Memory Technology
Slots 4 x DDR4 DIMM Slots
Supported Memory AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory.
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory.
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory 64GB
Graphics
Graphics -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Max Shared Memory Shared memory default 2GB. Max Shared memory supports up to 16GB

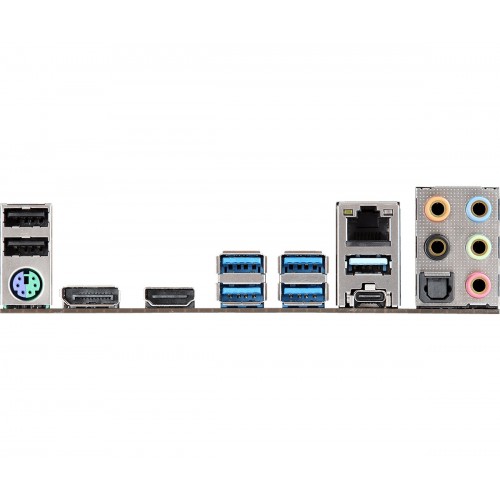

Connector & Ports
HDMI 1 x HDMI Port
Display Port (s) 1 x DisplayPort 1.2
USB (s) – 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU and Raven Ridge 2)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Audio HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports – 1 x COM Port Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x Addressable LED Header**
– 1 x AMD Fan LED Header***
– 1 x CPU Fan Connector (4-pin)****
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module ) – 1 x TPM Header
Warranty Information
Manufacturing Warranty 03 years

Description

Asrock B450M Steel Legend AMD Micro-ATX Motherboard

Asrock B450M Steel Legend AMD AM4 Socket.Supports DDR4 3533+ (OC)1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1. AMD Quad CrossFireXâ„¢. Graphics Output: DisplayPort, HDMI. 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3).2 USB 3.1 Gen2 (Rear Type-A+C). 6 USB 3.1 Gen1 (2 Front, 4 Rear). Realtek Gigabit LAN
